Description

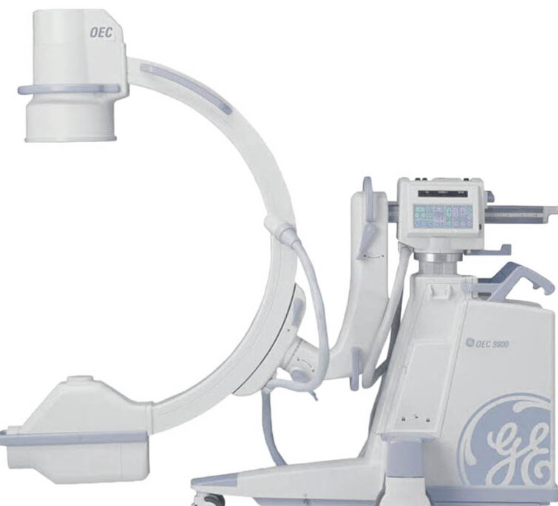

GE C-ARM OEC 9800 parts
are essential for ensuring reliable performance and high-quality imaging in medical centers
from glory medical imaging are known for their high reliability, ensuring the device’s optimal performance.
These replacement components are carefully inspected to ensure compatibility, durability, and long-term reliability. Using high-quality ultrasound spare parts helps reduce system downtime and supports consistent diagnostic performance in clinical environments
00-879788-01 |
Bracket, Mounting, Generator/Card Rack |
5340083FS |
Assembly, PCB, Filament Driver |
00-878908-03 |
Generator Driver Board |
5316595 |
Generator Driver Board |
00-900987-03 |
Tank, High Voltage |
5654164 |
Tank, High Voltage |
5543534 |
Screw, NA, Socket, Hex, 1/4-20, 3/4, SZC, 8 |
12-331114-08 |
Screw, NA, Socket, Hex, 1/4-20, 1/2, SZC, 8 |
12-225108-08 |
Screw, 8-32 x 1/2, Torx |
21-259986-00 |
Caster, Wheel, 4”D, 1-3/8W |
00-879364-03* |
PCB, Assembly, Backplane |
12-225106-06 |
Screw, SEMS, Spring, Pan, TORX, 6-32, 3/8, SZC |
22-319804-00 |
Guide, PCB, Snap in 6.50L, .31W, .062 |
5328674FS |
High Voltage Supply Regulator Board |
5340089 |
Generator Interface Board |
5318470FS |
Fluoro Functions Board |
00-879695-01 |
Chassis, Card Cage |
12-225160-20 |
Screw, SEMS Spring, Pan, TORX, 10-32,1, SZC |
5308464 |
Assembly, IGBT/Snubber |
5395682 |
Assembly, IGBT/Snubber |
00-882730-01 |
Heatsink, IGBT Snubber |
00-882729-01 |
Heatsink, Tank, High Voltage |
22-429830-00 |
Standoff, Round, M/F, 10-32, 1.000 L, SST |
00-879970-01 |
Assembly, Fan, Power Supply |
00-879800-02 |
Inductor Assembly, Series Tuning |
5371756FS |
Battery Charger Assembly |
5340315-02 |
Battery Charger Assembly |
5406092-01 |
Battery Charger Replacement Kit |
5245149 |
Power Supply, 24VDC |
12-225108-08 |
Screw, SEMS Spring, Pan, TORX, 8-32, 1/2, SZC |
5376264FS |
Assembly, Power Supply, Multi-Output |
22-012000-00 |
Clamp, Cable/Wire, 3/4D, .50W, Nylon |
5406092-01 |
Battery Charger Replacement Kit |
00-879446-01 |
CABLE ASM, PS2-PWR SIG |
00-879400-01 |
Cable Assembly, Lift Power |
00-879401-01 |
Cable Assembly, Lift Control |
5482133 |
PCB, Power/Motor Relay |
00-880406-03 |
Assembly, Capacitor/Power Module |
5305184 |
Battery Pack |
00-875583-01 |
Retainer, Battery |
67-430004-00 |
Ind, Lamp, Ne, 110 V, Green |
00-879455-01 |
Cable Assembly, B’plane-Hand/Foot Switch |
00-879021-02 |
PCB Assembly, Power/Signal Intf, 9800 |
5317616FS |
PCB Assembly, Power/Signal Intf, 9800 |
00-901393-01 |
Power Supply, +5/+12/+-15 |
5365841 |
Power Supply, +5/+12/+-15 |
00-879452-01 |
Cable Assembly, B’plane-Power Signal |
00-879502-07 |
Assembly, Control Panel, Left |
00-879502-09 |
Assembly, Control Panel, Left |
00-879422-01 |
Assembly, Cable, X-ray Switch |
00-879395-03 |
Assembly, Cable, Motion Lift Down |
00-879031-01 |
Assembly, Cable, Lift Up |
00-879502-06 |
Assembly, Control Panel, Right |
00-879502-08 |
Assembly, Control Panel, Right (Icon) |
5326409-01 |
Generator Control Panel Processor Board |
00-880324-01 |
PCB, Control Panel Processor I/O |
00-878488-04 |
Assembly, Control Panel Processor Mainframe |
5444393-01 |
Generator Control Panel Processor Replacement Kit |
5482139-01 |
Generator Control Panel Processor |
00-880821-01 |
Assembly, L-Arm, Mechanical |
00-880655-01 |
Flip Flop, 9” |
00-880656-01 |
Flip Flop, 12” |
00-879502-06 |
Panel Assembly, Control, C-Arm |
00-879502-08 |
Panel Assembly, Control, Icon, C-Arm |
00-901403-01 |
Module, Vacuum Fluorescent Display |
00-882098-01 |
Cable Assembly, Flush Fast Stop (Right) |
00-882098-02 |
Cable Assembly, Flush Fast Stop (Left) |
12-225108-08 |
Screw, 8×32, ½” SEM |
00-880854-01 |
Camera EMI Shield 9” |
51-500507-00-OEC |
Hardware Kit, Connector, Jack, Socket, Set, 4-40, .50L |
12-312060-08 |
Screw, NA, Socket, Hex, 10-32, 1/2, SST |
12-225106-20 |
Screw, SEMS, Spring, Pan, TORX, 6-32, 1, SCZ |
00-901180-02 |
II Power Supply |
5341390 |
II Power Supply |
00-902229-03 |
9” II Input Ring |
00-902229-04 |
12” II Input Ring |
00-871303-01 |
Gasket, X-Ray Grid |
00-901200-01 |
Grid, X-Ray, 10.1, 9” |
12-215004-05 |
Screw, Machine, Flange, TORX, 4-40, 5/16, SZC |
12-225160-08 |
Screw, SEMS, Spring, Pan, Torx, 10-32, 1/2, SZC |
00-879917-01 |
Collimator, Secondary, 12”, 3 Pot |
00-879575-01 |
Collimator, Secondary, 9”, 3 Pot |
5324216 |
Collimator (Dual Leaf Tungsten Opaque Leaves) |
5324214 |
Collimator (Dual Copper Semi-Transparent Leaves) |
5324213 |
Kit, Service, Repair, Insp Instr and Collimator Asm, Cardiac |
00-876567-02 |
Bumper, X-Ray Mount |
12-225106-06 |
Screw, SEMS, Spring, Pan, TORX, 6-32, 3/8, SZC |
22-678482-00 |
Ring, Retaining, Internal, Spl, 2.312 SST |
00-880838-01 |
Collimator, Primary 9” |
00-880839-01 |
Collimator, Primary 12” |
00-880855-01 |
Spacer, Foam, Primary, Collimator |
5450698 |
X-Ray Tube, Varian/Varex |
5485305 |
X-Ray Tube, GE BEL |
00-901753-01 |
Assembly, Thermal Switch |
5265486 |
Assembly, Skin Spacer |
5694681-01 |
High Voltage Cable for 9” and 12” Standard C-Arm Systems |
5694681-02 |
High Voltage Cable for 9” Super C-Arm Systems |
00-881499-01 |
Assembly, Temp Sensor, X-Ray |
00-880631-02 |
Weldment, C, 9” for Non-MD systems |
00-880636-02 |
Weldment, C, 12” for Non-MD systems |
00-880820-01 |
Assembly, Brake Shoe |
21-119921-00 |
Bearing, Roller, Taper-Cup, 2.3612 OD, 4700WD |
88-299477-00-OEC |
Lube, Grease, GP, 14.1OZ, CRTG |
00-879905-01 |
Machining, Cross Arm |
19-224948-00 |
Pin, Spring, .438 OD, 2.50, Stee |
19-224946-00 |
Pin, Spring, .3750OD, 2.000, SZC |
00-880692-01 |
Handle, L-Arm |
19-224763-00 |
Pin, Spring, .125 OD, .500, Steel |
5331073 |
Shaft, Brake, L-Arm |
00-879394-02 |
Insert, Handle |
12-225160-08 |
Screw, SEMS, Spring, Pan, TORX, 10-32, 1/2, SZC |
22-680001-00 |
Ring, Retaining, EXT, E-TYP, .1875, SST |
00-876981-01 |
Handle, Brake, Flip Flop |
22-678622-00 |
Ring, Retaining, External, Basic, 7/16, Spring, Steel |
00-879344-01 |
Actuator, Right Hand |
12-225160-08 |
Screw, SEMS, Spring, Pan, TORX, 10-32, 1/2, SZC |
00-881224-01 |
Yoke, Roller |
00-901523-02 |
Clutch, Friction 9” Stnd “C” (Red) |
12-225160-20 |
Screw, Socket, Spring, Pan, TORX, 10-32, 1, SZC |
00-881057-02 |
Pad, Brake |
00-881056-01 |
Base, Brake |
00-880387-01 |
Arm, Brake |
00-881222-01 |
Spring, Roller |
00-880385-01 |
Pivot, Brake |
12-225106-06 |
Screw, SEMS, Spring, Pan, TORX, 6-32, 3/8, SZC |
00-876704-01 |
Handle, Brake, C-Rotation |
00-880383-01 |
Shaft, Brake |
00-880384-01 |
Cam, Brake |
88-299477-00-OEC |
Lube, Grease, GP, 14, 1OZ, CRTG |
00-882362-01 |
Assembly, Roller and Bearing, 9” |
00-881224-01 |
Yoke, Roller (For 9” systems |
00-901523-01 |
Clutch, Friction 12” Standard “C” (Blue) |
12-225160-20 |
Screw, SEMS, Spring, Pan, TORX, 10-32, 1, SZC |
00-881057-02 |
Brake, Pad |
00-881056-01 |
Base, Brake |
11-633910-04 |
Screw, Set, Socket, Hex, 10-32, 1/4, SBO, KCUP |
00-882371-01 |
Assembly, Roller and Bearing, 12” |
22-407702-00 |
Standoff, Hex, M/F, 4-40, .250L, Steel |
00-880432-02 |
Assembly, Cross Arm Housing |
12-225108-12 |
Screw, Sems Spring, Pan, Torx, 8-32, 3/4 |
12-311114-14 |
Screw, NA, Socket, Hex, 1/4-20, 7/8, SZC, 8 |
12-318039-26 |
Screw, Metric, Socket, Hex, M10 X 40 mm, SZP |
00-884173-01 |
Kit, replacement, lift column |
00-884173-02 |
Kit, replacement, lift column |
00-879828-01 |
Gasket, Column, Vertical |
00-881574-02 |
Spacer, Column, Vertical |
00-876980-01 |
Handle, Brake, Wig Wag |
12-215060-08 |
Screw, Machine, Flanged, TORX, 10-32, 1/2, SZC |
5474109 |
Brake Assembly, Cross Arm |
00-885094-01 5340089 |
Upgrade Kit, Brake Assembly, Cross Arm |
00-879894-01 |
Roller, Cross Arm |
00-881284-01 |
Sleeve, Stop |
12-311116-12 |
Screw, NA, Socket, Hex, 3/8-16, 3/4, SZC, 8 |
12-313916-22 |
Screw, NA, Socket, Hex, 3/8-16, 1 1/4, SZP |
00-879797-01 |
Shaft, Mount, Cross Arm |
00-879702-01 |
Mount, Bearing |
21-301793-00 |
Nut, Lock, Brg, 1.967-16, Steel Zinc |
00-876962-01 |
Pad, Stop |
88-299614-00 |
Adhesive, Black, Max, TB, 10oz, 38050 |
00-879707-02 |
Assembly, Brake Pad |
00-879704-01 |
Actuator, Brake |
00-879713-01 |
Plate, Fixed |
00-880529-01 |
Roller, Cross Arm, Narrow |
00-886867-01 |
9800 STD 9 Inch C-Arm Custom Rollers FS UPGRD Kit |
00-878931-01 |
Handle, Rear Right Grip |
21-180017-00 |
Bearing, Cyl, Flg, .625 ID, .875 OD, .875 L |
00-878932-01 |
Handle, Rear, Left |
00-878933-01 |
Handle, Rear, Right, Stationary |
00-878937-01 |
Spacer, Tube, Rear, Handle |
00-901113-01 |
Universal Joint, Upper, Steering |
00-901101-01 |
Key, U-Joint, Steering |
00-878938-01 |
Shaft, Tiller, Upper, Steering |
20-842001-00 |
Coupling, Shaft, 5/8ID, 1.312OD, SBO |
00-879030-01 |
Shaft, Tiller, Lower, Steering |
00-878939-01 |
Universal Joint, Lower, Steering |
21-109586-00 |
Bearing, Ball, 1.181ID, 1.8504 OD, .3543 WD |
00-879027-01 |
Shaft, Tiller, Short, Steering |
00-878942-01 |
Sprocket, Drive, Steering |
19-224945-00 |
Pin Spring, .250OD, 1, SZC |
14-211110-00 |
Washer, Lock, Helical-Spring, #10, SZC, NA, ID – .194 |
12-311110-12 |
Screw, NA, Socket, Hex, 10-24, 3/4, SZC, 8 |
00-878945-01 |
Cam, Detent, Steering |
00-901102-01 |
Key, Rear, Steering |
00-901101-01 |
Key, U-Joint, Rear Steering |
23-608974-00 |
Bumper, Adhesive Backing, .500 OD X .060 T, White |
12-313910-26 |
Screw, NA, Socket, Hex, 10-24, 1-3/4, SBO |
21-128814-00 |
Bearing, Needle-Roller, .500ID, .750 OD, .750 WD |
12-999545-00 |
Screw, NA, Shoulder, Hex, 3/8-16, 1/2 X 1-1/4 |
12-999539-00 |
Screw, NA, Shoulder, Hex, 5/16-18, 3/8 X 1-1/4 |
21-190062-00 |
Bearing, Cam Follower Roller, 1/4-20, .625 OD |
12-363914-22 |
Screw, NA, Button, Hex, 1/4-20, 1-1/4, SBO |
00-876833-03 |
Pedal, Rear Wheel Brake |
00-881779-02 |
Plate, Mounting, Front Caster |
00-881296-01 |
Caster Pin Mount |
00-881347-01 |
Blade, Cable Pusher, Front |
00-881295-01 |
Machining, Arm, Front Caster |
00-882788-01 |
ASM, Steering |
00-879162-01 |
Chain, Steering, Short |
20-500003-00 |
Link, Chain, Spring, Cl., .375 PD, Steel |
00-879146-01 |
Turnbuckle, Chain, Right Hand |
00-878953-01 |
Chain, Steering, Long |
13-121164-00 |
Nut, Hex, 1/4-28, SZC, ANSI B18.6.3 |
00-880889-02 |
Assembly, Rear Wheel |
00-881587-01 |
Assembly, Skirt, Cable Pusher |
00-881346-01 |
Blade, Cable Pusher, Rear |
00-879115-01 |
Plunger, Brake, Adjustment, Steering |
00-878948-01 |
Plunger, Brake, Steering |
21-119920-00 |
Bearing, Roller, Taper-Cone, 1.3775 ID, .6600 WD |
21-709177-00 |
Spring, Compression, .720 OD, 1.250 LG, .072 WD, Stee |
21-139776-00 |
Bearing, Cylinder, Flange, .500 ID, .625 OD, .750 L |
00-901077-01 |
Wheel, Plastic, 8”, Steering |
21-139777-00 |
Bearing, Cylinder, Fl, .875 ID, 1.000 OD, .750 L |
00-878944-01 |
Sprocket, Yoke, Steering |
00-881075-01 |
Handle, C |
00-880886-03 |
Weldment, C-Arm, C-Major |
12-312060-12 |
Screw, 10-32, 3/4”, Socket Hex |
00-877488-01 |
Gasket, Camera Cover |
12-225106-08 |
Screw, SEMS Spring, Pan, TORX, 6-32, 1/2, SZC |
00-882852-01 |
Weight, Camera |
00-881226-01 |
Anchor, Weight, Super C |
5505611 |
Front EMI Cover, Super C with Shielding and Camera Weight |
12-312060-26 |
Screw, 10-32 x 1 3/4” Hex Socket |
51-500507-00-OEC |
Hardware Kit, Connector, JK Socket Set, 4-40 .50l |
00-879496-01 |
Cable Assembly, Camera Video |
51-300003-00 |
Connector, Adapter, Filter, 25 pos, D |
12-225106-04 |
Screw, 6-32 x 1/4” SEMS |
28-993022-00 |
Hose Clamp |
15-997002-00 |
Term, Fston, F, Crp, 16-14, NA, Lib25 |
00-881107-01 |
Weight, Mount, X-Ray |
00-881976-01 |
Assembly, Cooling Kit, Super C, Integrated |
00-881700-01 |
Standard Cooling Kit (9”) |
00-881584-02 |
Cover, Cooling Kit, Super C no fan holes |
00-883496-01 |
Cooling Fan |
5324216 |
Collimator (Dual Leaf Tungsten Opaque Leaves) |
5324214 |
Collimator (Dual Copper Semi-Transparent Leaves) |
5324212 |
Collimator (Single Leaf) Cardiac Systems Only |
00-881105-01* |
Weight, Top, X-Ray |
00-881106-01 |
Weight, Front, X-Ray |
00-880706-02 |
Cover, Collimator |
00-879343-01 |
Actuator, Left Handle |
19-221854-00 |
Pin, Dowel, .1250 OD, .750, Stainless Steel |
00-880671-01 |
Shaft, Pivot, Super-C |
21-119936-00 |
Bearing, Roller, Tapered-Cone, 3.000 ID, .5313 WD |
00-879955-01 |
Spacing, Housing, Rear, C-Major |
00-901523-04 |
Clutch, Friction, Super-C (Green) |
12-331114-14 |
Screw, NA, Flange, Hex, 1/4-20, 7/8, SZC, 8 |
00-880623-01 |
Machining, Flip-Flop, Super-C |
00-882363-02 |
Assembly, Roller and Bearing, Super C |
00-882787-03 |
Super-C Flip-Flop Brake Assembly |
00-881200-01* |
Fan Assembly |
00-882361-01 |
Guard, Fan |
00-881125-01 |
Duct, Fan |
12-225104-04 |
Screw, SEMS Spring, Pan, TORX, 4-40,1/4, SZC |
00-881127-01 |
Ring, Retainer, Expansion Chamber |
00-874624-01 |
Label, Dangerous Voltage |
12-331114-10 |
Screw, NA, Flat, Hex, 1/4-20, 5/8, SZC, 8 |
12-311115-20 |
Screw, NA, Socket, Hex, 5/16-18, 1, SZC,8 |
00-883470-02 |
Cover Assembly, Rear |
5331524-01 |
Assembly, Console, RUI (English) |
5331524-02 |
Assembly, Console, RUI (Icon) |
00-879454-01 |
Cable Assembly, B’Plane+C5-HV Tank |
00-875583-01 |
Retainer, Battery |
5694682 |
High Voltage Cable for 9” Motorized C-Arm Systems |
5694683 |
High Voltage Cable for 12” Motorized C-Arm Systems |
5340080 |
Assembly, Back Plane, C-Arm PCB |
00-885112-01 |
Power Panel, Mount Bracket |
5391660 |
PCB, Assembly, Master Control Unit |
12-225108-24 |
Screw, SEMS Spring, Pan, TORX, 8-32,1-1/2,SZC |
00-879787-01 |
Bracket, Mounting, Strain Relief |
12-215008-08 |
Screw, Machine, Flat, TORX, 8-32, 1/2, SZC |
00-873369-02 |
Label, Protective Earth Ground |
5371033FS |
Gasket, Lemo Connector |
00-902287-02 |
Power, Supply, 60VDC |
5315876FS |
PCB Assembly, Power/Motor Relay |
00-879806-01 |
Bracket, Cover, Leg |
00-879870-02* |
Assembly, Stator Cap/Transformer |
00-880643-01 |
Cover Assembly, Bearing, Cross Arm |
00-880445-02* |
Cable Assembly, Power/Back Panel Display |
12-225104-08 |
Screw, SEMS Spring, Pan, TORX, 4-40, 1/2, SZC |
00-876691-02 |
Cable Assembly, Display |
88-299319-00-OEC |
Adhesive, Sealant, Blue, Bottle, .7oz, 42540 |
00-876565-02 |
Cover, Assembly, Cross Beam |
00-880897-01 |
End Cap, Cross Beam |
00-880427-01 |
Cover, Front, Left |
00-878894-02 |
Label, Focal Spot |
00-881513-01 |
Gasket, Cover, Collimator |
12-313914-10 |
Screw, NA, Socket, Hex, 1/4-20, 5/8, SZP |
00-902268-01 |
Heat Pipe, X-Ray Tube |
00-902269-01 |
Heat Sink, Folded Fin |
88-299476-00 |
Lube, Ansz, 1 Pt |
00-881499-01 |
Assembly, Temp Sensor, X-Ray |
00-877286-01 |
Cover, X-Ray Tube |
22-119650-00 |
Clamp, Cable Tie, 3/32 x 3-5/8, Nylon |
00-885165-01 |
Duct, Cooling, Upper |
00-884763-01 |
Multi-Fan Assembly |
00-885348-01 |
Lock, Spring, Duct Cooling |
00-885350-01 |
Spacer, Duct Cooling |
12-225108-22 |
Screw, SEMS Spring, Pan, TORX, 8-32, 1-1/4, SZC |
12-225106-12 |
Screw, SEMS Spring, Pan, TORX, 6-32, 3/4, SZC |
00-884936-01 |
Duct, Cooling, Middle |
00-884937-01 |
Duct, Cooling, Lower |
00-877448-01 |
Gasket, Cover, Collimator |
00-881977-01 |
Fan Assembly 12 VDC |
00-884939-01 |
Retainer, Duct, Cooling, Lower |
00-902270-01 |
Filter, Cooling, X-Ray Tube |
00-885000-01 |
Mount, Filter, Cooling |
00-901597-01 |
Filter, Cooling Kit (SCD) Super C |
5264976-02 |
Motor, DC Servo, Orbital |
5262354 |
Assembly, Mechanism, Orbital, 9” |
5271669 |
Assembly, Mechanism, Orbital, 12” |
5229673 |
Bracket, EMI Motor, DC Servo (Not Exploded) |
00-885246-01 |
Clamp, Cable, Motorized |
22-120016-00 |
Clamp, Cable, Ribbon QIK LOK, .62 x 1.75, Nylon |
11-622008-04 |
Screw, Set, Socket, Hex, 8-32, 1/4, SST, Cup |
00-885029-02 |
Assembly, Clamp, Belt |
00-880833-01 |
Weight, Rear, Top, Super C |
00-884907-01 |
End Cap, Machining |
5263408-01 |
Assembly, Cross Arm, Motorized, 9” |
00-879667-01 |
Handle, Push, Cross Arm |
00-885421-01 |
Rocker Assembly |
12-331115-20 |
Screw, NA, Flat, Hex, 5/16-18, 1, SZC, 8 |
00-902336-01 |
Gear Box, Worm, 30:1 (SCD) |
5264976-01 |
Motor, DC Servo, Rotationa |
00-881233-01 |
Label, Horizontal Cross Arm |
00-884644-01 |
Assembly, Rotation Knuckle |
5224351 |
Cable Assembly, Potentiometer |
00-884651-01 |
Bracket, Mounting, Pot |
00-902314-01 |
Pulley, Rotation |
5534675 |
Screw, Metric, Socket, HEX, M 10 x 70 mm, SZP |
14-999787-00 |
Washer, Plain – Metric, H Str, SZC, ID = 10.5 mm, OD = 20 mm |
00-885006-01 |
Assembly, Housing, Cross Arm |
21-109943-00 |
Bearing, Ball, .6693 ID 1.3780OD, .3937 WD |
12-225108-04 |
Screw, SEMS Spring, Pan, TORX, 8-32, 1/4, SZC |
00-882789-01 |
Assembly, Caster Plate, Front (9” and 12” systems, non-MD) |
00-879535-01* |
Weldment, Connector, EMI.RFI |
28-993023-00 |
Hose Clamp |
00-886128-01 |
Weight, Camera, 12” Motorized |
12-312060-22 |
Screw, NA, Socket, Hex, 10-32, 1-1/4, SST |
00-885651-01 |
Assembly, Contact Detection, MD, 12” |
00-901201-01 |
Grid, X-Ray, 10:1, 12” |
00-878868-01 |
Gasket, Grid, X-Ray, 12” |
00-885710-01 |
Assembly, Rotational Knuckle, 12”, Motorized |
12-311108-04 |
Screw, NA, Socket, Hex, 8-32, 1/4, SZC, 8 |
00-900801-01 |
HV Grease |
Related products
