Description

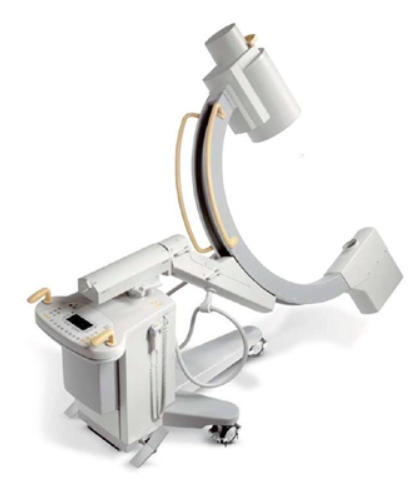

PHILIPS C-ARM BV LIBRA parts
PHILIPS C-ARM BV LIBRA parts are essential for ensuring reliable performance and high-quality imaging in medical centers
from glory medical imaging are known for their high reliability, ensuring the device’s optimal performance.
These replacement components are carefully inspected to ensure compatibility, durability, and long-term reliability. Using high-quality ultrasound spare parts helps reduce system downtime and supports consistent diagnostic performance in clinical environments
PART NUMBER PN |
DESCRIPTION |
452209007023 |
ACCO-COMBO V3 |
459800138352 |
9″ II/TV LASER AIMING DEVICE |
452230019561 |
BRAKE ASSY LEFT |
452230019571 |
BRAKE ASSY RIGHT |
452210532662 |
BV LIBRA BOARD |
452216422721 |
CHAIN GUIDE |
7111-5700 |
COAXIAL LASER UNIT |
459800011731 |
DFI 2C |
459800011733 |
DFI-IIC FRU |
451213128543 |
FLAT CABLE |
452216503522 |
FOOT SWITCH |
452216503526 |
FOOT SWITCH |
452216503527 |
FOOT SWITCH |
452214503527 |
FOOT SWITCH |
452230019872 |
FRU MCU SWITCH ON BOARD |
989601007151 |
GRID SWITCH 9 INCHES |
991932050882 |
HI BRI colour LCD (Monitor) |
989601023421 |
II generator |
452216175402 |
IRIS MOTOR ASSY |
459800819232 |
LCD MONITOR |
452210457286 |
Main cable |
459800611481 |
Monitor cart LHS touchscreen |
459801571893 |
Monitor cart LHS touchscreen |
989000061831 |
PACKED HT CONV.TANK |
941503238401 |
Power Supply |
452230019551 |
side wheel assembly right |
452212702533 |
SWITCH ON/OFF-1 BOARD |
452230019501 |
Switch Panel Assy |
989600008351 |
System lock |
459800219713 |
UNIVERSAL FOOTSWITCH |
989000064801 |
X -RAY TUBE |
452216302102 |
Coverplate assy cablemount |
452216323232 |
shield HRC |
452216194664 |
Plate |
452216194603 |
Lead ring |
452216194686 |
Ring for implosion plate |
452230003761 |
implosion plate assy with mu-metal shielding 9″ |
452216701715 |
PREPROC2 board |
452216701252 |
interface board XTV-8SX |
452216702633 |
Rotirix board |
452216175402 |
iris motor assy |
452216175403 |
iris motor assy |
452216175404 |
iris motor assy |
452216175421 |
iris potmeter assy |
452216701371 |
rotaflexnew XTV8-S |
452216185242 |
base plate EMC |
452212180363 |
Pressure Plate |
452216169447 |
XTV-8S integrated optics |
452216175442 |
Rotation bearing |
452216169042 |
Ring |
452216168783 |
Locking strip |
989601007151 |
Grid 9″ |
986606545101 |
Grid 6″ |
459801106331 |
Z laser power supply packed |
459801106341 |
Z laser Battery packed |
459801106351 |
Z laser PCB packed |
132205111168 |
paint repair L-grey |
132205411188 |
paint repair D-yellow |
132205411156 |
paint repair mushroom |
452210355241 |
potential cable L=3,2m |
242254940998 |
PLCC extractor 8920001 |
452298038422 |
Flex filter holder |
452209007185 |
MERGE CONNECTIVITY 1.25 |
452230009191 |
footpedal |
452230009091 |
brake assembly |
452230014661 |
conducting strip |
452230009062 |
wheel assy with brake |
452230009052 |
wheel assy |
452230014671 |
cable deflector |
452230009102 |
brake rod |
452212702127 |
trolley user interf. board |
452216501122 |
Switch panel Trolley |
452209006151 |
trackebdall KB34-403-5058 |
452212859132 |
packing trackerball |
452230014151 |
frame control panel |
242208600546 |
UL-FUSE FA KTK 15A 600V |
242208600549 |
UL-fuse, KVK 30A/600v |
242209200025 |
fuseholder 30A/600V |
242208600166 |
UL-fuse fast 250V/10A |
243208800095 |
fuse holder |
242208600546 |
UL-FUSE FA KTK 15A 600V |
242208600549 |
UL-fuse, KVK 30A/600v |
242209200025 |
fuseholder 30A/600V |
242208600166 |
UL-fuse fast 250V/10A |
243208800053 |
fuse carrier 32 |
243208800095 |
fuse holder |
242213206807 |
magn. switch 24V |
452216503031 |
SIGNALNLIGHT |
243050000065 |
lamp 60-E14-K-024-005W |
989601002841 |
TV MONITOR SG17 HLR/d |
452212702941 |
IR receiver board |
452209018231 |
Video paper printer UP970 |
452209018241 |
video pap/transp printer UP990 |
989600005871 |
Video CD Recorder PAL/50Hz |
989600192991 |
DVD recorder |
989600193001 |
Mech. parts med. DVD-Rec |
452212702812 |
ADNR 2 board |
452216700644 |
OPROC board |
452212702591 |
SPROCE BV300 rel. 2 |
452216700585 |
DFB board |
452216700637 |
DHIRES board |
452216700606 |
USYSIO board |
452212702801 |
PSTDBP backpanel |
941503157701 |
powersupply PE3157/70 430W |
452209000971 |
Fan |
452212906201 |
Packed HT conv.tank |
202200500032 |
electr. cap. 2000uF/450V |
452210399511 |
controlled rectif. choke |
211326500356 |
resistor pwr 10K/5%/HSA50 |
452212702296 |
F017 filement supply |
452212702284 |
FET power control board |
452210778605 |
Rectifier Power Board |
452212701611 |
FET Inverter Power 1 Board |
452212701622 |
FET Inverter Power 2 Board |
452212702091 |
Generator 300 back panel |
452216501563 |
COMBO V3 SUCONC board |
452212702496 |
STUCO BV300 |
452212702557 |
Pulsemaster board |
452212702078 |
X-generator control board |
452216700959 |
bls-ctl coll.BV300 board |
452212703202 |
SUCO back panel |
732204385021 |
pcb guide 60817-016 |
452216503622 |
Low voltage supply BV Libra |
459800220041 |
Libra – Powersupply + FetPwrCntrl |
459800044971 |
Power assy BV Libra |
452216503083 |
HLC |
452210459421 |
Adaptation cable HLC unit |
452212876761 |
spacer (IEC) 9″/12″ |
452212876781 |
spacer (HHS) 9″ |
452212906221 |
Packed collimator cover |
989601023201 |
Collimator |
452216501391 |
Flatpanel VMC BV Libra |
452230014811 |
Handgrip assy BV Libra yellow |
452230014881 |
Steering wheel assy |
452230014872 |
Chain assy BV Libra |
452210489941 |
ballbearing INA SM12 |
262285539103 |
guide roller 8x24x14 |
452212624336 |
Spring |
252263002014 |
Retain ring external 15 |
252263002006 |
retain ring external 8 |
452212857472 |
Bracket |
262200700025 |
taper roller bearing |
452212825601 |
Leafspring Hor. Brake Assy |
252240109011 |
nut M4 stlSt |
252200117169 |
Ch-hd screw M4x8 stlSt |
252204314008 |
set screw M4x8 |
252272808006 |
spring ring 5.1 stlSt |
252200604037 |
hex.skt-hd scr M5x20 stlSt |
252272808007 |
spring ring 6.1 stlSt |
252200604051 |
hex.skt-hd scr M6x12 stlSt |
252204314044 |
set screw M6x6 |
252272808008 |
WASHER SPRING LOCK M8 8.2 stlSt |
252200604071 |
hex.skt-hd scr M8x20 stlSt |
252200602027 |
hex.skt-hd scr M4x25 |
252200602209 |
Hex.skt-hd scr M5x16 |
452230014361 |
horzontal movem. assy r.2 |
452230007341 |
brake shaft assembly |
452230007351 |
handgrip assembly |
452230007361 |
shaft assemby |
452230014341 |
slide piece assembly |
452230014342 |
Slide piece assembly |
452212905782 |
C-arc brake |
452230014761 |
Front wheel assy |
452230014191 |
wheel group stand |
452230014851 |
Sam chain longitudinal movem |
452230019541 |
Side wheel assy left |
452230019551 |
Side wheel assy right |
452230019561 |
Brake assy left |
452212657831 |
rubber foot |
452230019571 |
Brake assy right |
452230014521 |
Cable deflector kit |
452230009191 |
footpedal |
452230019801 |
Guide strip |
989600008351 |
System lock |
452216502181 |
Handswitch BV Family |
459801059721 |
Handswitch BV Family Packed |
452216701802 |
Focus board |
452216320612 |
Gripp yellow |
452216301463 |
Cover plug (mushroom) |
452216195443 |
plate |
452216323232 |
shield HRC |
452216194664 |
Plate |
452216194603 |
Lead ring |
452230003761 |
implosion plate assy with mu-metal shielding 9″ |
452212905992 |
Cover |
452230014912 |
Ornamental cap |
452216502642 |
Right cover |
452216502663 |
Back pack cover |
452216502632 |
Left cover |
452212906751 |
Cover |
452216502622 |
Front cover |
452216502603 |
Switchpanel cover |
452216502652 |
Label plate |
452212876313 |
Handswitch holder |
