Description

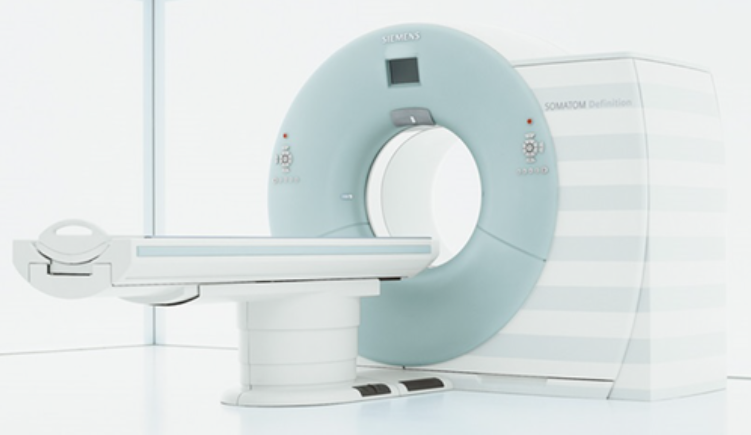

SEIMENS CT DEFINITION DS parts
are essential for ensuring reliable performance and high-quality imaging in medical centers
from glory medical imaging are known for their high reliability, ensuring the device’s optimal performance.
These replacement components are carefully inspected to ensure compatibility, durability, and long-term reliability. Using high-quality ultrasound spare parts helps reduce system downtime and supports consistent diagnostic performance in clinical environments
8402740 |
Tube-cooling |
8365988 |
Service Part Matrix XGR-Box |
10912665 |
XGR-Box SP |
7741098 |
Power slipring assy |
7741148 |
Set of carbon brushes |
7741130 |
BRUSH BLOCK |
7741163 |
SIGNAL BRUSH BLOCK INSERT |
8365640 |
HVT M8 Matrix |
8365756 |
SEALING RUBBER |
1070721 |
Micro Switch 250V 6A |
8685567 |
Noise Filter 480V 50 60Hz 3x35A |
10437573 |
SIGNAL/LOW POWER ASSY |
10161804 |
EMC Brush |
10430801 |
PDS P47 |
10187203 |
UMAS |
10590240 |
UMAS plus |
8902319 |
Cable |
8902327 |
Balancing sensor rear |
10161796 |
replacement kit break resistor |
10430657 |
Brake resistance |
3086824 |
NOISE FILTER, 550 VAC, 25 A |
4690707 |
Noise Filter 440 250V 50 60Hz 3x 16A |
8685567 |
Noise Filter 480V 50 60Hz 3x35A |
4695409 |
Noise Filter 10A 250V SIFI-B |
10161600 |
Cooling Control Electronics |
7395432 |
Temperature sensor |
10161599 |
fan assembly |
10161603 |
CONDENSATE PUMP KIT |
10161605 |
FLOAT SWITCH |
10161604 |
Valve Positioner Drive |
10161602 |
TEMPERATURE SENSOR WATER |
10161861 |
W Reset Y |
4806183 |
HOSE PIPE 20M |
7066095 |
NIPPLE 2X M36X2 |
1610356 |
Hose Coupling |
10430784 |
HOSE COUPLING |
10431921 |
Pull up hose clamps WCS |
2793771 |
Footswitch |
10161844 |
Servo Controller |
8402740 |
Tube Cooling Assembly |
8365988 |
Matrix XGR-Box |
10912665 |
XGR-Box Definition SP |
7741098 |
Power Slipring Assy |
7741130 |
BRUSH BLOCK |
7741163 |
SIGNAL BRUSH BLOCK INSERT |
8365756 |
SEALING RUBBER |
3810236 |
SILICONE WASHER |
1070721 |
MICROSWITCH, 1CO, 250 V, 6A, QC 6.3 |
10161804 |
EMC Brush |
8685567 |
Noise Filter 480V 50 60Hz 4x35A |
10497573 |
SIGNAL/LOW POWER ASSY |
7741148 |
SET OF CARBON BRUSHES |
8365640 |
SERVICE PART HVT MATRIX M8 |
10023388 |
DMS A t |
10023342 |
Metal DMS Cover M8- 672 |
10023351 |
DMS Power Supply |
10023305 |
Cover M8- 672 Kompl |
W516 electrical conductor |
|
8902871 |
W 517 electrical conductor |
10023353 |
DAS CONTROLLER P43 |
10023391 |
Module M8 TACH |
8428331 |
Module Cable |
8428034 |
BACKPLANE RIGHT P30F/L, D582 |
8428026 |
BACKPLANE LEFT P30F/L, D581 |
10023355 |
UHR M8 cpl |
8429255 |
Spindle drive kpl |
8429388 |
HOME_SENSOR |
10023384 |
Conversion- set comb control M8 |
10023363 |
Comb cable_ Bp_ Gen_ IO_ M8 |
8429123 |
Sleeve adapter |
8429800 |
DMS A cpl |
10023352 |
DMS- Power supply application 2 |
7688182 |
Dascon WF HW |
10023308 |
Module M8 Cpl |
10023379 |
ID-Dongle_CT32 |
10023390 |
DMS B t |
10023343 |
Metal DMS Cover M8-352 |
10023330 |
cover M8- 352 Kompl |
10023320 |
DMS _B_Backplane |
10023353 |
DAS CONTROLLER P43 |
10023351 |
DMS Power Supply |
10023391 |
Module M8 TACH |
8428331 |
Module cable |
8903747 |
CBB TERMINAL CONNECTOR |
8903752 |
CB TERMINAL CONNECTOR |
4665329 |
Measur Lead 1pol 4mm 1.5m FED gnge |
10094446 |
FOC 3m |
10094447 |
FOC 30M |
8675956 |
ROCKER SWITCH 1NO 250V 8A SW |
1070721 |
Microswitch 1CO 250V 6A QC 6.3 |
3101953 |
Actuator Ball actuator =D= |
10141781 |
TOOL FOR TUBE-FASTENING |
3433802 |
LASHSTRAP EINTEILIG-1,5M |
3426392 |
CABLE TIE SN 70764-A 188X4,8-PA66-B |
7741320 |
Alignment jig |
7741338 |
Slipring edge prot. w/ label |
10161624 |
PINS |
10093700 |
DUMMY PLUGS |
7741692 |
INSULATION KIT |
7741536 |
Lifting Gear Front/ Rear |
7741528 |
Emergency kit |
10267572 |
Grinding set |
10267573 |
GRINDING PAPER SET |
10496960 |
ACCESSORIES |
10768806 |
COVERS/ PMM. PMM2 |
7068521 |
Lashing strap EINTEILIG- 6M KLEMMSCHLOSS |
3417490 |
TYPE B APPLIED PART |
3862203 |
Label. max. table load 220kg |
4811076 |
Label, “Risk of crushing” |
4812371 |
WARNING LABEL |
8614302 |
TABLE TOP 2000 |
8614831 |
SENSOR STT |
11344351 |
W752 safety switch cable |
8611555 |
KIT ACCESSORY RAIL |
8611688 |
SPACER |
8616075 |
SETSCREWS M6X6 |
8614260 |
Kit deflector plate |
8616836 |
CABLE DEFLECTOR |
7077829 |
GUIDE CARRIAGE 82 X 48 X 36 |
7063464 |
110MM X 2 MONTAGEHLIFE LINEAR GUIDE |
8614385 |
MAGNETIC SENSOR B722 |
8614740 |
PMM CABLE VERTICAL LIFT |
8614757 |
PMM CABLE top support |
8614849 |
CABLE SLIDING TABLE TOP |
8614278 |
BELT PULLEY |
8614344 |
DRIVE MOTOR TT |
8618394 |
DRIVE MOTOR TS |
8614401 |
MOTOR CONTROLLER HORIZONTAL MX |
8614351 |
TIMING BELT TT |
8615853 |
BELT PULLEY PHS |
8615861 |
Belt pulley PHS_MPT |
8614377 |
WIRE SENSOR B732 |
11344344 |
SP-WIRE-SENSOR |
8614393 |
KEYPAD D704 COMPLETE |
8614724 |
CABLE SET PHS3 |
8693447 |
MICROSWITCH 1U 250V 100MA AU |
10547010 |
ROTARY ENCODER, 12/13 BIT, SSI INTERFACE |
8614427 |
DRIVE UNIT VERTICAL LIFT (M711) |
8614294 |
DRIVE UNIT VERTICAL LIFT (M711) |
10092130 |
RUBBER COUPLINGS |
8614369 |
TIMING BELT TS |
8693454 |
MICROSWITCH, 100 MA, 250 V |
8614286 |
LINEAR BRARING VERTICAL |
8614500 |
POWER SUPPLY |
8612413 |
PHS CONTROLLER (LMAS-2) |
10643790 |
LMAS 3 ASSEMBLY |
8614732 |
CABLE HARNESS M700 |
8614443 |
BRAKE RESISTOR R719 |
8614450 |
FUSE 1 AT |
8614476 |
RELAY K711 |
8614484 |
RELAY (K709) |
8614492 |
RECTIFIER 600V,35A (V702) |
8614468 |
SAFETY RELAY (K701) |
8614518 |
Motor Controller VERTICAL |
8611712 |
DISTANCE BOLT |
11344353 |
supporting roll assembly |
8615457 |
Bolt. short |
8615465 |
BOLT 1 |
11344350 |
Wago bypass cable |
7064298 |
TERMINAL 4GR-M.SICH.-HALTER |
10497762 |
Guiding pin |
11344344 |
SP-WIRE-SENSOR |
8402740 |
Tube Cooling |
8365988 |
Service part Matrix XGR-Box |
10912665 |
XGR-BOX DEFINITION SP |
7741098 |
Power Slipring Assembly |
7741148 |
SET OF CARBON BRUSHES |
7741130 |
BRUSH BLOCK |
7741163 |
SIGNAL BRUSH BLOCK INSERT |
8365640 |
SERVICE PART HVT MATRIX M8 |
8365756 |
SEALING RUBBER |
3810236 |
SILICONE WASHER |
1070721 |
MICROSWITCH, 6 A, 250 V, 3 POLES |
10161804 |
EMC BRUSH |
8685567 |
Noise Filter 480V 50 60Hz 3x35A |
10497573 |
SIGNAL/LOW POWER ASSY |
8904257 |
W250 ELECTRICAL CONDUCTOR |
8904265 |
W251 ELECTRICAL CONDUCTOR |
8904455 |
W270 ELECTRICAL CONDUCTOR |
8902657 |
W395 ELECTRICAL CONDUCTOR |
8902665 |
W396 ELECTRICAL CONDUCTOR |
8903408 |
W570 ELECTRICAL CONDUCTOR |
8903523 |
W582ELECTRICAL CONDUCTOR |
8903549 |
W584ELECTRICAL CONDUCTOR |
8903564 |
W586ELECTRICAL CONDUCTOR |
8903580 |
W588ELECTRICAL CONDUCTOR |
8903606 |
W590ELECTRICAL CONDUCTOR |
8903622 |
W592ELECTRICAL CONDUCTOR |
8903648 |
W594ELECTRICAL CONDUCTOR |
8903663 |
W596ELECTRICAL CONDUCTOR |
8903689 |
W598ELECTRICAL CONDUCTOR |
8903697 |
W599ELECTRICAL CONDUCTOR |
10023388 |
DMS A t |
8429800 |
DMS A CPL |
10023390 |
DMS B_T |
8429750 |
DMS B CPL |
8401296 |
XDC COMPONENT |
8401007 |
Straton MX |
10161663 |
HV- Cablekit B |
10161662 |
HV- Cablekit A |
10094352 |
LIGHT MARKER, STAT |
7741700 |
Tube Collimator Z40-A |
7741940 |
Tube Collimator Z40-B |
10094353 |
Lightmarker Rot |
10094366 |
Lightmarker Transaxial |
7741189 |
Rotor Assy |
10161624 |
PINS |
7741197 |
Transmitter |
7741239 |
Transmitter |
7741247 |
RECEIVER |
10161621 |
Antenna carrier |
10161622 |
WIRING INTERFACE PCB |
10161623 |
WIRING INTERFACE PCB |
10430747 |
PDR |
8096211 |
UMAR KOMPO |
10094550 |
CAN_L TERMINAL CONNECTOR |
10161620 |
Antenna Carrier |
7741247 |
RECEIVER |
7741221 |
Stationary kit |
10161624 |
PINS |
7741320 |
Alignment jig |
7741015 |
LPS unit |
7741957 |
phi- Z- Monitor X 60 |
8901410 |
panel right |
10161670 |
INTERVENTIONAL PANEL |
10161671 |
WIRELESS INTERFACE GANTRY |
10567156 |
INTERVENTIONAL PANEL (IVP-REDESIGN) |
10567157 |
Wireless Interface Gantry (WIG) Redesign |
10266731 |
PRINTED FOIL |
10187329 |
WALL HOLDER IVM |
10161758 |
RAILING SUPPORT |
10161759 |
ADAPTION HOLDER |
10161672 |
IVP POWER SUPPLY |
3821449 |
CABLE HOLDER |
10161762 |
ACCUPACK (4X AA NIMH) IVM |
10856933 |
IVM LABEL SET |
8902541 |
W384 electrical conductor |
10161673 |
USB EXTENSION |
10161674 |
IVP-CAN CABLE |
10161760 |
UMAS WIG CABLE |
10749840 |
ASSY; FRU FOR IVM |
10161676 |
Circuit Breaker 100A.F1 |
10663056 |
REPLACEMENTSET CIRCUIT BREAKER 100A |
10161679 |
MOTOR OVERL SW 80-100A 690V =D= |
10663057 |
REPLACEMENTSET CIRCUIT BREAKER 90A |
10161680 |
MOTOR OVERL SW 7-10A 690V =D= |
10891095 |
PDC A Replacementset F3 |
10161681 |
MOTOR OVERL SW 45-63A 690V =D= |
10663058 |
REPLACEMENTSET CIRCUIT BREAKER 60A |
10161682 |
MOTOR OVERL SW 28-40A 690V =D= |
10663059 |
REPLACEMENTSET CIRCUIT BREAKER 36A |
10161683 |
MOTOR OVERL SW 22-32A 690V =D= |
10663060 |
Replacementset Circuit Breaker 29A |
10161714 |
Pushbutton 1S 1OE 20A 230V |
10161677 |
shunt trip F1.1;F2.1;F3.1;F5.1;F” |
10161678 |
ATTACH.RELEASE 1NC 1NO |
10161684 |
N CUTOUT 10A 440VAC 1pol.Car. C =D= |
10161685 |
ATTACH.RELEASE 2NO 230V |
10161686 |
ATTACH.RELEASE 1NC 1NO |
10548213 |
MCB 32A 400VAC 1pol.Car.C |
10546820 |
MCB 4A 400VAC 1POL.CAR.C |
10161689 |
Circuit Breaker C.16A.F11.F15 |
10546822 |
MCB 16A 400VAC 1POL.CAR.C |
10161688 |
N CUTOUT 32A 440VAC 2pol.Car. A =D= |
10548609 |
N CUTOUT 32A 400VAC 2pol.Car.C |
10963701 |
CIRCUIT BREAKER, 16 A, 400 VAC, 2 POLES |
10161692 |
FI CIRC.BREAKER 30MA 25A 230V 2PO =D= |
10161694 |
CURR MONIT: REL. RCMA474 |
10963311 |
CURR MONITOR 150/300MA 52.5MM |
10663065 |
REPLACEMENT SET T2/F18 |
10431909 |
OVERVOLTAGE PROTECTION COMPLETE |
10545888 |
SURGE SUPPRESSOR TYP2 275VAC 350VDC |
10545887 |
SURGE SUPPRESSOR TYP2 NPE 255V |
10545888 |
SURGE SUPPRESSOR TYP2 275VAC 350VDC |
10545887 |
SURGE SUPPRESSOR TYP2 NPE 255V |
10161691 |
N CUTOUT 6A 440VAC 1pol.Car. C =D= |
10546821 |
MCB 6A 400VAC 1POL.CAR.C |
10161699 |
Timing Relay 24V 1C/O 3A =D= |
10965802 |
TIMING RELAY 24V-240V 1CO 0.05S-300h |
10161700 |
Coupler 24V/240V AC/DC 2C/O =D= |
11425133 |
RELAY, AC 230VAC 2CO 8A 250V |
10891099 |
PDC A Replacementset K3; K9 |
10548976 |
CONTACTOR 24VDC 3P 1NC 5.5KW S00 |
10161705 |
SCHUETZ 24VDC 2NO 2NC 22A 400V =D= |
10161707 |
VOLTAGE LIMITAT VARISTOR =D= |
10891098 |
PDC A REPLACEMENTSET K7 |
10891096 |
PDC A Replacementset K8 |
10161711 |
CONTACT 24VDC 3S + 1S 22A 400V =D= |
10891097 |
PDC A Replacementset K11 |
10547794 |
Cont Add-On Part 1NO 1Pol CC |
57624476 |
TEMPERATURE SWITCH 38 DEGREE |
11060700 |
COMPRESSOR KIT F70 |
7014504 |
POWER MODULE MKII |
5762484 |
TEMPERATURE SWITCH 100 DEGREE |
4763707 |
ADSORBER CACP6000 |
3228017 |
1/2″ Aeroquip Seal |
10018312 |
SERTO ELBOW FITTING FOR HE COMPRESS |
3861494 |
COMPRESSOR FILL POINT SEAL |
8396660 |
REFILL ADAPTER |
7383461 |
PAIR OF WATER HOSES INCL. BALL VALV |
7014496 |
POWER CABLE 0.7 |
7383123 |
Sami D4 |
7383578 |
TRANSMITTER 63MHZ BB |
7383339 |
RFPA E6-2 |
4692711 |
CIRCUIT 10A 440VAC 1 POL Car. D =D= |
4757287 |
CCD Camera |
3074986 |
ATTENUATOR PAD BNC 50R 30DB 4GHZ 1W |
3058583 |
REC. MODULE 8-65MHZ 0DBM DIG =D= |
10433474 |
PAMO 5 CAMERA-EXTENSION-SET |
10433475 |
PAMO 5 CCD Vario Camera |
10433478 |
OBJECTIVE 6-60MM |
4757295 |
FIBER OPT. CABLE 40M |
10590871 |
SUPPLY CABLE, CAMERA 18M, W4186 |
10590872 |
SUPPLY CABLE, CAMERA 65M, W4186 |
Related products
