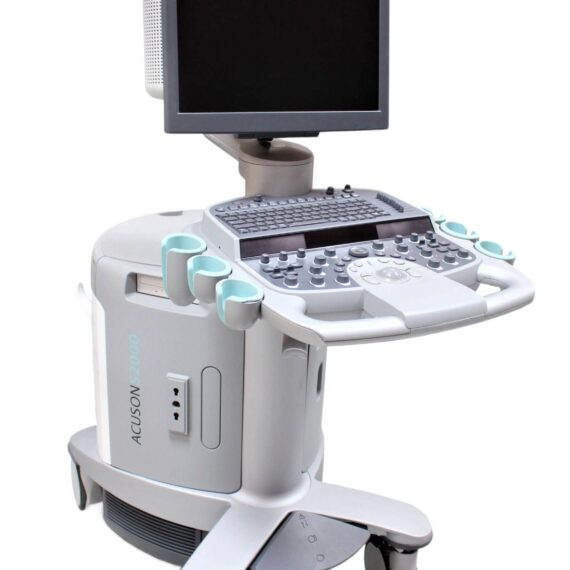

Siemens ultrasound Acuson S2000 parts

10439474

PWA, S2000,TRB/I (RoHs)

from system Serial No. 210800

07475028

PWA, XMIT RCV BD.TRB/I,ANTARES

10037087

Assy. CB Board, Antares

10439482

PWA, S2000,CB/N (RoHs)

from system Serial No. 210800

10439476

PWA, S2000,RCB/L (RoHs)

from system Serial No. 210800

07472421

PWA,BE_P2.61 BOARD

07476810

PWA,RC BOARD,RCB/L

10855935

PWA, S-FAMILY, RCB/P

Requires SW VE10A or higher.

10039639

PWA, RM200 Video Interf, VI/F

10039639 and 10435338 are

interchangeable

10435338

PWA, S2000.RM200 vid. interf .. VI/F2

10039639 and 10435338 are

interchangeable

10438694

PWA, S2000,RM300 vid. interf.

for RM300 only

10040949

Assy. IO Module, S2000, RM200, IOBD

10041217

CONN MOD RJ45 COUPLER RM200 S2000

Snap in connector,

10041105

COUPLER, RJ45 CAT6 SHLD PNLMT

Screw in connector,

Option for Part-No. 10041217

10043984

Assy. Hard Drive, 2TB mini, RM2/300

minumum 1TB,

incl. mounting brackets,

replacement for early production

S2000 with 160Gb HD.

11287517

HDD Assy, 2TB, SATA_2, S-Fam

for RM301/RM300 SW VA16D and higher,

for RM220 SW. 200.1.123 and higher

10439676

RM200 Module w/o HDD

without Hard drive,

includes HD brackets,

replaces 10038592 and 10044096

10438526

LTB:RM300, CPU Module, S2000/VI

Min SW VB10C. With HDD. Can be replaced with

10852163, 10854302,

10854750 if min. SW req. is met

10852163

RM300 Module w/o HDD, BIOS 5936

Min SW VC20A. W/O HDD. Can be replaced with

10438526, 10854302,

10854750 if min. SW req. is met

10854302

RM300 Module w/o HDD, BIOS 5936, GT640

Min SW VC25C. W/O HDD. Can be replaced with

10438526, 10852163,

10854750 if min. SW req. is met

10854750

RM301, CPU Module, w/o HDD. S Family

Min SW VC25D.

10041286

Assy. S2000 Generic E-Module

Nickel-plated Cardcage with backplane,

also order Part-No. 10041105/RJ45

10854738

S Family/Ant RM200+ Card Cage Cover

from system Serial No. 210800,

contains card cage cover only.

can be used on all E-module card cages

with RM200’s and above.

11507841

Set, RM200 to RM301 Replace, S2000

for SW VB10E or higher

08259644

4C1

11286576

C-4C1

08258525

4C1

11286575

C-4C1

08248186

6C2

11286582

C-6C2

10043226

7CF2

10789380

10789381

10135941

6C1 HD

11575181

6C1

11286581

C-6C1

10349999

MC9-4 Transducer

10658925

7CF1 Transducer

Phased Array Transducer

10789398

4P1 XDCR (MP). S2000_G

Linear Transducer

10035946

9L4 Transducer

for System Serial No. below 210801

11286585

C-9L4

10789393

9L4

11286586

C-9L4 Tra
